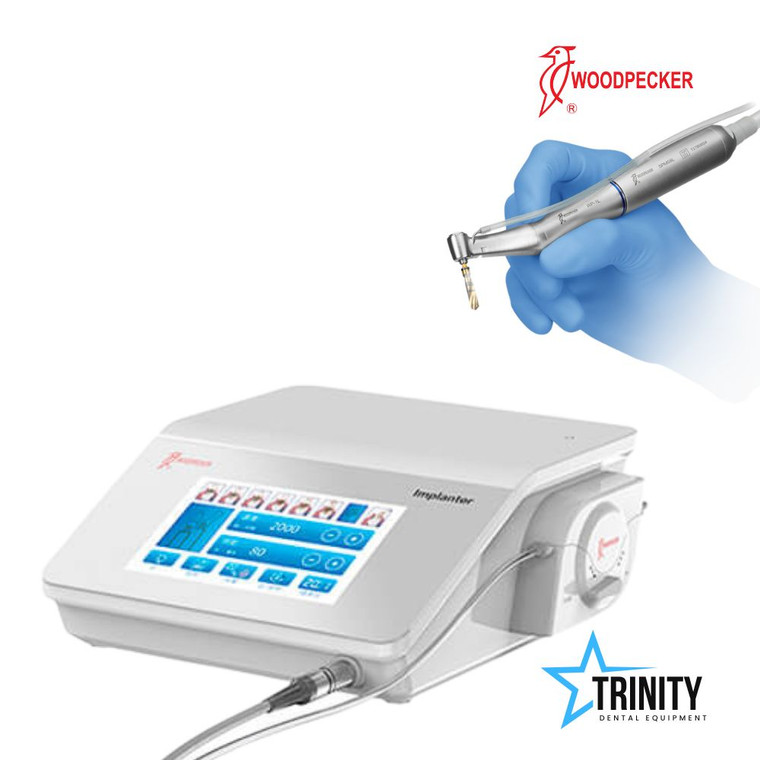

Woodpecker Implanter Plus Dental Implant Motor

Woodpecker Implanter Plus Dental Implant Surgical Motor with 20:1 LED Handpiece

The Woodpecker Implanter Plus is a high-performance dental implant surgical motor designed for precision, strength, and safety in implant procedures. Combining the power of Swiss technology with advanced features, the Implanter ensures efficient, accurate, and safe surgeries for dental professionals.

Key Features:

• Swiss Imported Motor:
  The Implanter is powered by a high-quality Swiss motor known for its precision and strength. With a 6.2Ncm motor torque, it guarantees up to 80Ncm output torque, which makes it perfect for handling difficult implant surgeries with ease.

• Intuitive User Interface:
  The system features a large color touch screen that displays a clear visual representation of every step during the implant procedure. Preset parameters help eliminate the need for manual settings, allowing for a smoother and faster setup process.

• Silent Motor and Contra-Angle:
  The silent motor ensures a quieter working environment, while the LED contra-angle handpiece improves visibility during procedures, enhancing precision and efficiency. The high-precision contra-angle provides stable torque output even at high speeds, ensuring accuracy during surgery.

• Autoclavable Components:
  Both the motor and contra-angle handpiece are autoclavable, ensuring easy sterilization and safety during use. The lightweight motor allows for greater flexibility and comfort during operations.

• Advanced Peristaltic Pump:
  The silent peristaltic pump ensures smooth water supply for cooling during surgeries. The pump is easy to connect and works with disposable oral water pipes, promoting safety and hygiene in the treatment area.

• Multi-Function Foot Pedal:
  The multi-function foot pedal allows hands-free control of the motor, enabling the operator to maintain focus on the procedure without the need to adjust settings manually.

• High-Precision Contra-Angle:
  The contra-angle features high-precision machining and a scratch-resistant coating, ensuring long-term durability and reliable performance. It’s designed for ergonomic comfort, reducing fatigue during extended procedures, and it provides optimal cooling and illumination for enhanced visibility.

Specifications:

• Rotation Speed Range: 300 – 40,000 rpm
• Torque Range (20:1 Gear): 5 N.cm – 80 N.cm
• Max Pump Output: 110 ml/min
• Main Unit Dimensions: 276 mm x 267 mm x 110 mm
• Motor Dimensions: C23.4 mm x L91 mm
• Motor Weight: 140 g
• Power Supply: AC 110V, 50/60Hz

Package Includes:

• Implanter Plus Unit x1
• 20:1 Contra-Angle Handpiece x1
• Handpiece Holder x1
• Power Cord x1
• Foot Pedal x1
• Disposable Tubes x4
• Disinfection Plug x1
• User Manual x1
• Pipe Clamp x10
• O-Ring Motor x4
• Spare Fuse x2
• Metal Rod x1
• Metal Case x1
• One-Year Warranty x1

Advantages:

1. Precision & Reliability: The Swiss motor delivers exceptional precision with a wide range of torque and speed for reliable performance during all implant surgeries.
2. Ease of Use: The intuitive color touchscreen and preset parameters make operation simple and efficient, eliminating complicated setup steps.
3. Quiet Operation: The silent motor and advanced peristaltic pump contribute to a quieter working environment, ensuring comfort for both patients and practitioners.
4. Safety and Hygiene: The autoclavable motor and handpiece and the silent pump ensure the highest level of hygiene, while the ergonomic contra-angle reduces the risk of operator fatigue.
5. Comprehensive Package: The package includes all necessary tools and accessories, making it a convenient and complete solution for implant surgeries.

The Woodpecker Implanter Plus is the perfect choice for dental professionals seeking a reliable, efficient, and user-friendly implant surgical motor that combines Swiss engineering with advanced technology for a superior surgical experience.
