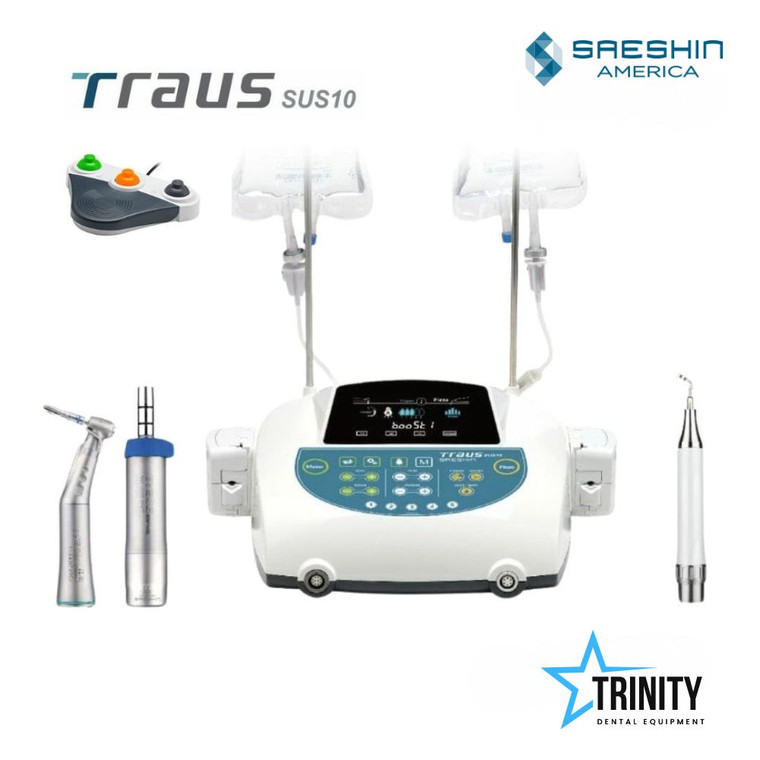

Saeshin Traus SUS10 Dental Implant and Ultrasonic Piezo Dual Unit

TRAUS SUS10 – Ultrasonic Piezo + Implant LED Motor (One Unit, Two Functions)

The TRAUS SUS10 system is a state-of-the-art device combining both Ultrasonic Piezo and Implant LED Motor functionalities into one unit, offering unparalleled versatility for dental professionals. Whether performing precise implant surgery or using ultrasonic piezoelectric technology for bone cutting, this device provides the tools needed for accurate, safe, and efficient dental procedures.

Key Features:

• Program Memory Function (Piezo/Implant): Stores up to 9 programmable memory settings for speed, torque, rotation direction, irrigation pump, intensity, and boost, enabling quick and easy adjustments during procedures.

• Automatic Overload Protection (Implant): The motor automatically stops if the load exceeds the set torque value, displaying an "error" sign for added safety.

• Real-Time RPM and Torque View (Implant): Displays real-time RPM and torque on the screen, allowing practitioners to monitor the procedure for advanced, precise control.

• Power and Vibration Control (Piezo): Adjust the power and vibration for different operations, optimizing the environment for each specific task.

• Motor Auto-Calibration (Implant): The system automatically calibrates the motor to reconcile the set speed and torque, ensuring accurate and safe operation.

• Work Change Function (Piezo/Implant): Switch between Piezo or Implant functions; only one of them can be used at a time for optimal performance.

• System Protection Function: The system continues to operate even if one function (Implant or Piezo) encounters a problem, ensuring uninterrupted service.

Controller Specifications:

• Max RPM: 50,000
• Input Voltage: 110V - 120V
• Fuse: 5A / 2A
• Frequency: 50Hz / 60Hz
• Output Power: 230W
• Max Pump Capacity: 90 +/- 20% mL/min
• Dimensions: W348 x D276 x H143 mm
• Weight: 3.6 kg

Implant E-Type Motor (MBP10SL):

• Max RPM: 40,000
• Motor Type: Optic
• Dimensions: L127.6 x W31.6 x H96 mm
• Weight: 270.0g

20:1 Implant LED Handpiece (CRB26LX):

• Max RPM: 2000
• Min RPM: 15
• Max Torque: 70 Ncm
• Weight: 82.0g

Piezo Handpiece (PEZ10XX):

• Working Frequency: 27 +/- 3 kHz
• Weight: 81.0g

Foot Controller Specifications:

• Dimensions: W272 x D203 x H67 mm
• Weight: 1.3 kg

Product Components:

• (2) Hangers
• (1) Foot Controller
• (1) Dual Control Box
• (1) Power Cord
• (1) Motor Stand
• (1) Irrigation Tube
• (1) Internal Spray Nozzle
• (1) Spray Nozzle
• (1) Motor Cap for Autoclave
• (1) Optic Contra-Angle Handpiece 20:1 Push Button
• (1) Piezo Handpiece
• (1) BLDC Motor
• (10) Tube Holders
• (10) Torque Wrenches
• (1) Tube Clamp
• (1) Foot Hanger
• (1) Foot Hanger Joint Cap
• (1) Sterilization Case
• (1) Tip Holder
• (10) Basic Tips
• (1) Aluminum Box
• (1) Instruction Manual

The TRAUS SUS10 is a versatile and efficient solution for dental practitioners looking to enhance their surgical capabilities, offering robust features for both ultrasonic piezo and implant procedures.
